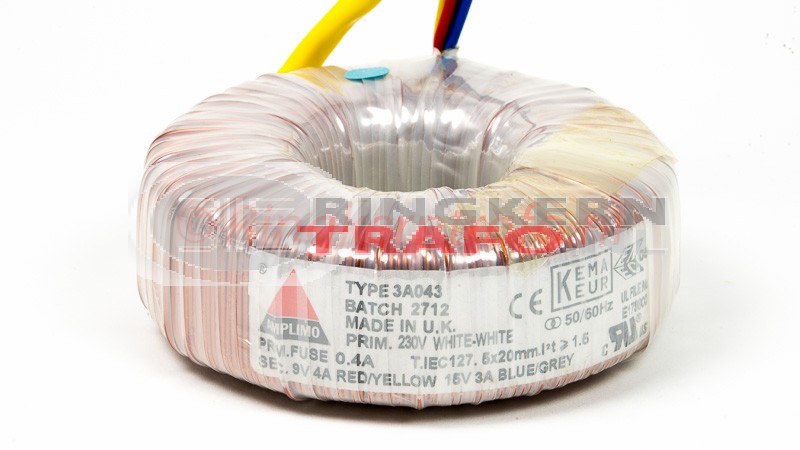

toroidal transformer for microcontrollers 80VA

Amplimo toroidal transformer type 3A043 was designed for supplying microcontrollers and microcomputers. This transformer can be used to create a power supply for +5V 2.5A and +12V 1.9A after rectification, smoothing and stabilisation.?

Specifications :

Power rating : 80VA
Primary winding : 230V
Secondary winding 1 : 9VAC - 4A
Secondary winding 2 : 15VAC - 3A
Diameter : 91mm
Height : 35mm
Moutingmaterials are included in de shipment.

KEMA KEUR Approval

This transformer is wound , tested and approved according to the European standard EN61558.

The products aswell as the production location are inspected regularly by a certified body.

"KEMA KEUR" is recognised in whole of Europe and offers unrestricted access to a lot of markets worldwide.
ENEC Approval

The quality approval ENEC for electrical apparatus and electronic products indicates
that this product meets the European Safety Standards and has been tested and approved
by a "Certified Body"
