TM3 step-up transformer 1:15

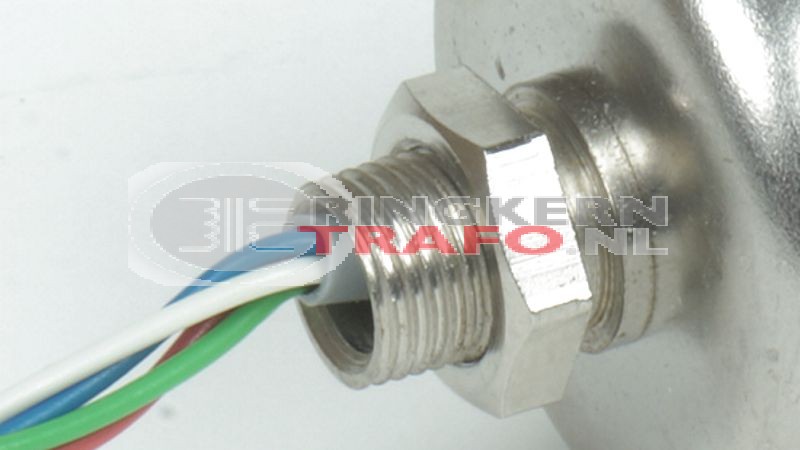

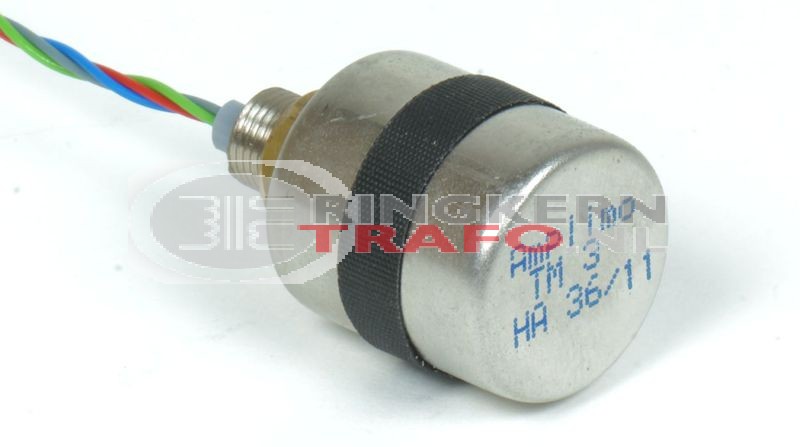

The step-up transformer TM3 has a step-up ratio of 1:15 and has got connection wires instead of PCB-pins.

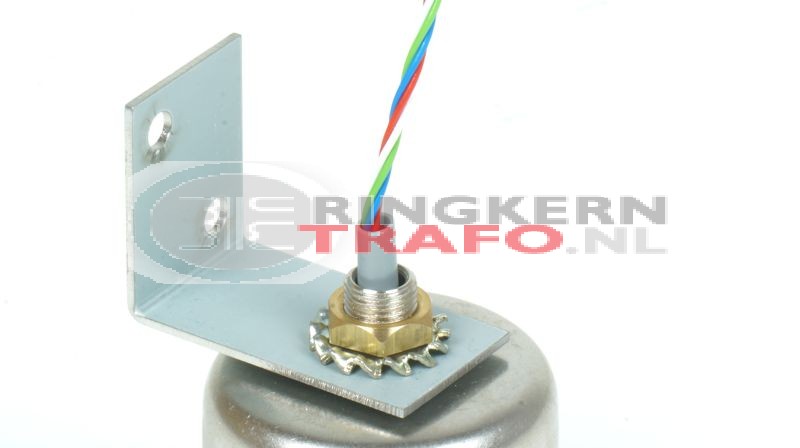

The mounting bracket shown in the picture can be ordered seperately and is not included in the shipment by default.
Specifications of the TM3 :
- transformation ratio : 1 : 15
- frequency range +/-3dB : 30 - 25000 Hz
- max. input voltage @ 20Hz : 800mV
- primary connection : microphone of approx. 200 ohm
- secondary connection : min. 45kohm
- primary wires : green - grey
- secondary wires : red - blue
- max. voltage between primary and secondary : 100V
- dimensions excl. screwthreat (dia x h): 22 x 23 mm
