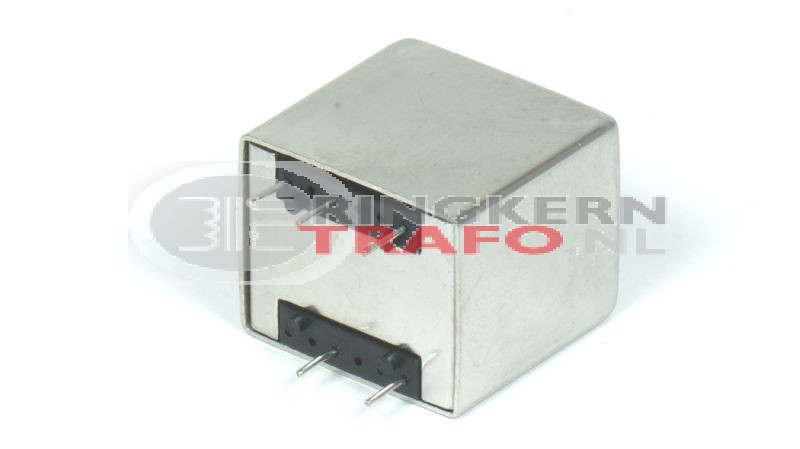

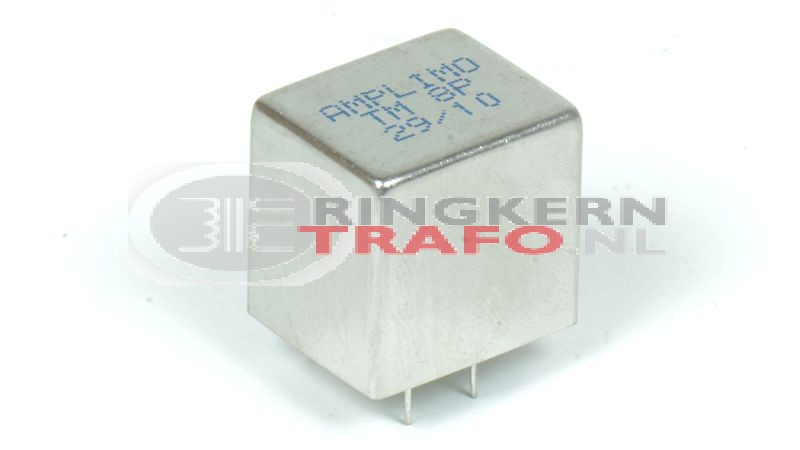

The signal transformer TM8P is a 1:1 PCB-transformer. This is the PCB version of transformer type TM8

Specifications :

• transformation ratio    :  1 : 1
• frequencyrange +/-3dB   :  30 - 25000 Hz
• max. input voltage @ 20Hz  :  2V = +8dB
• primary connection :   source of max. 600 ohm
• secondary connection :   min. 600 ohm
• max. voltage between primary and secondary  :   100V
• dimensions excl. PCB-pins (lxbxh):  24 x 20 x 24mm
