Specifications :

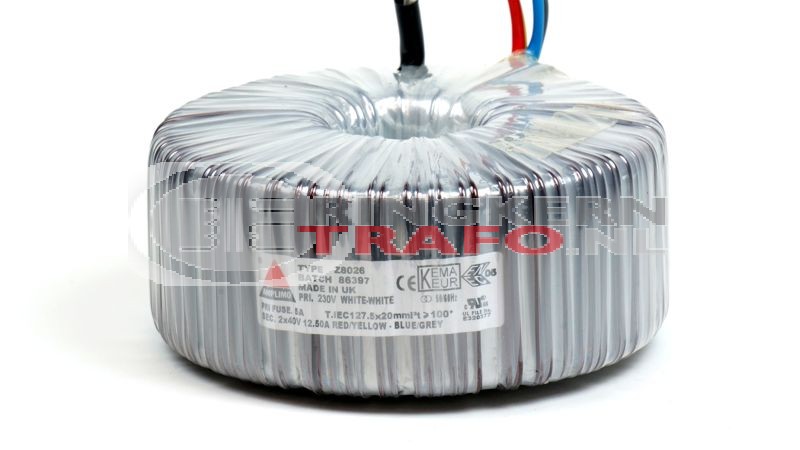

• Typenumber : Z8026
• Power rating : 1000VA
• Primary winding : 230V
• Secondary windings : 2x 40V - 12.5A
• Secondary windings in series gives : 80V - 12.5A
• Secondary windings in parallel gives : 40V - 25.0A
• Diameter : 160mm
• Height : 72mm
• Mounting materials are supplied in the shipment

Downloads:

Download datasheet Z8026 (PDF)
