2x 22V toroidal transformer 120VA
Specifications :

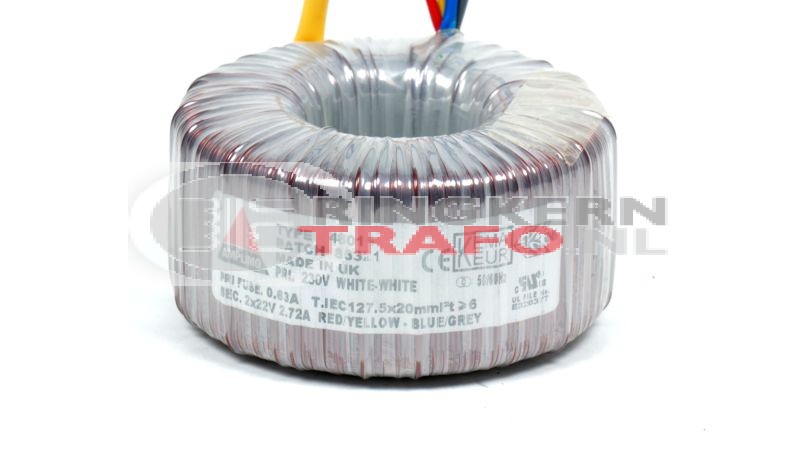

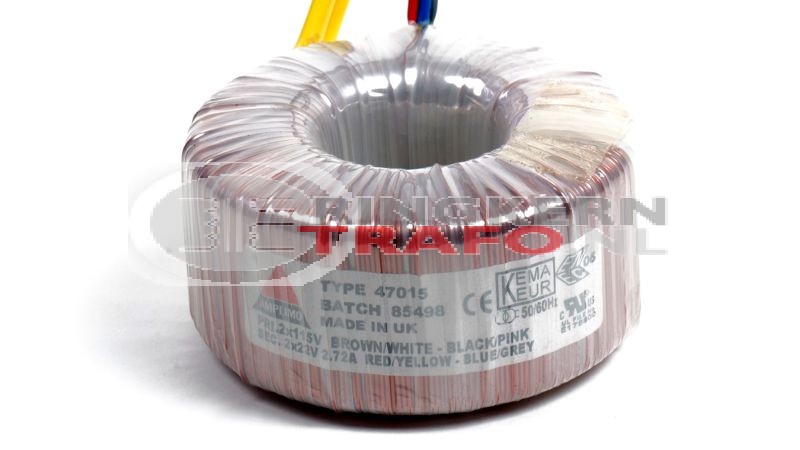

- Typenumber : 48015 / 47015
- Power rating : 120VA
- Primary winding : 230V(48015) of 2x115V(47015)
- Secondary windings : 2x 22V - 2.72A
- Secondary windings in series gives : 44V - 2.72A
- Secondary windings in parallel gives : 22V - 5.44A
- Diameter : 91mm
- Height : 49mm
- Mounting materials are supplied in the shipment
Downloads:
Download datasheet 48015 (PDF)
Download datasheet 47015 (PDF)
